Solar Panel PV Plug and Socket to 50 A Anderson Style 8AWG 300mm

$33.20

Solar Panel PV Plug and Socket to 50 A Anderson Style 8AWG 300mm. Connect an Anderson connector directly from the PV plug and socket of your solar panel.

70 in stock

SKU: CS0715 Category:

Solar Panel PV Plug and Socket to 50 A Anderson Style 8AWG 300mm

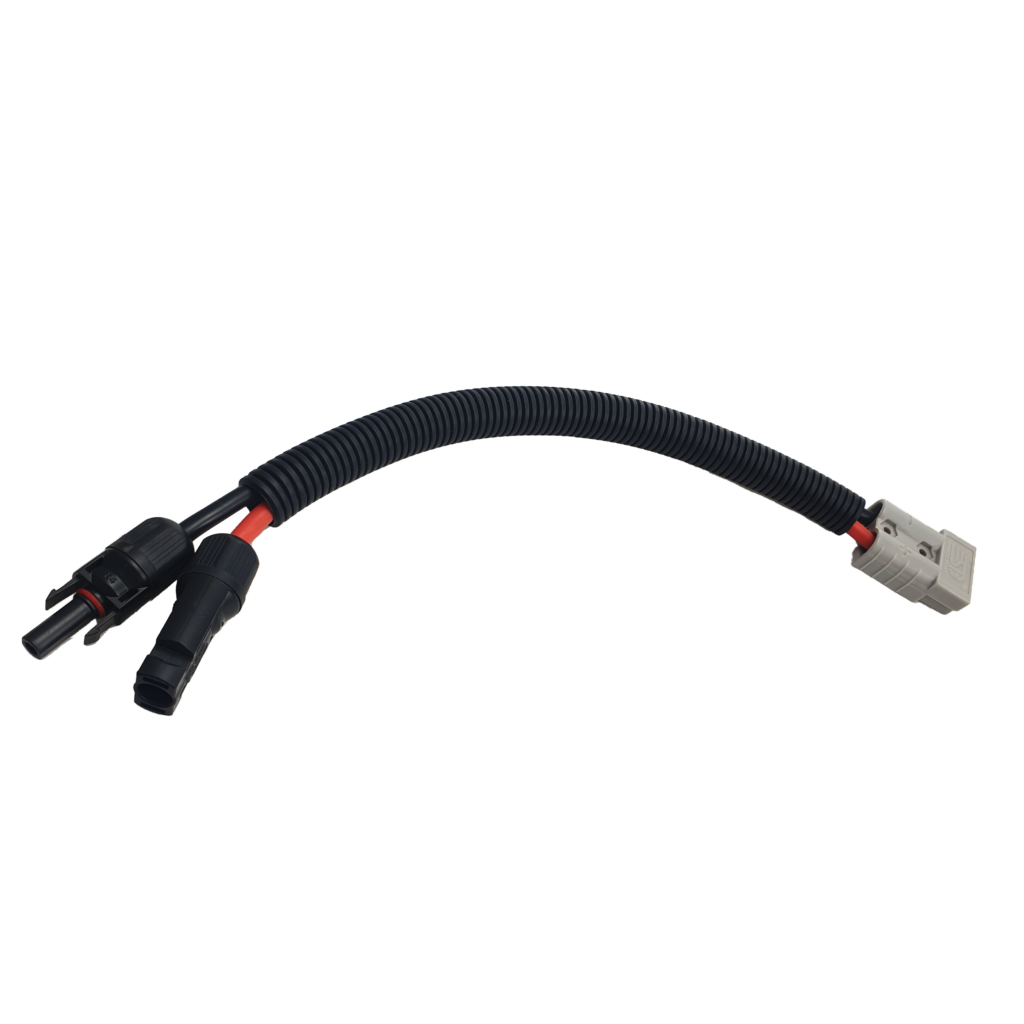

This connector is MC4 (PV) solar panel connector to Anderson Style 50 Amp connection. The MC4 connector is commonly used in solar and will allow you to connect directly from a solar panel which has MC4 outputs to an Anderson 50 Amp Connector.

The purpose of this connector is to provide and easy way of connecting solar panels into your 12/24 volt system eliminating the need to change the MC4 connector that are on your solar panel.

This premade cable is 400 mm in length and is constructed with 8 AWG silicon tinned cable. On one end is the MC4 (Multi Contact 4mm) waterproof connectors which have been crimp fitted and the other end is an Anderson Style 50 Amp connector. The MC4 connectors will mate with any MC4 connector and the Anderson 50 Amp will mate with any Anderson connector 50 amp in Grey or Black.

Specifications

Cable Size 8 AWG
Fittings Input. MC4 Waterproof Solar Connectors

Output. Anderson Style 50 Amp

Colour Grey
Fitment Type Crimped
Length 400 mm
Recommended Maximum Load 40 Amps
Max Amps Critical Load Distance 3 Meters
Max Amps Non Critical Load Distance 9.1 Meters
12 months
