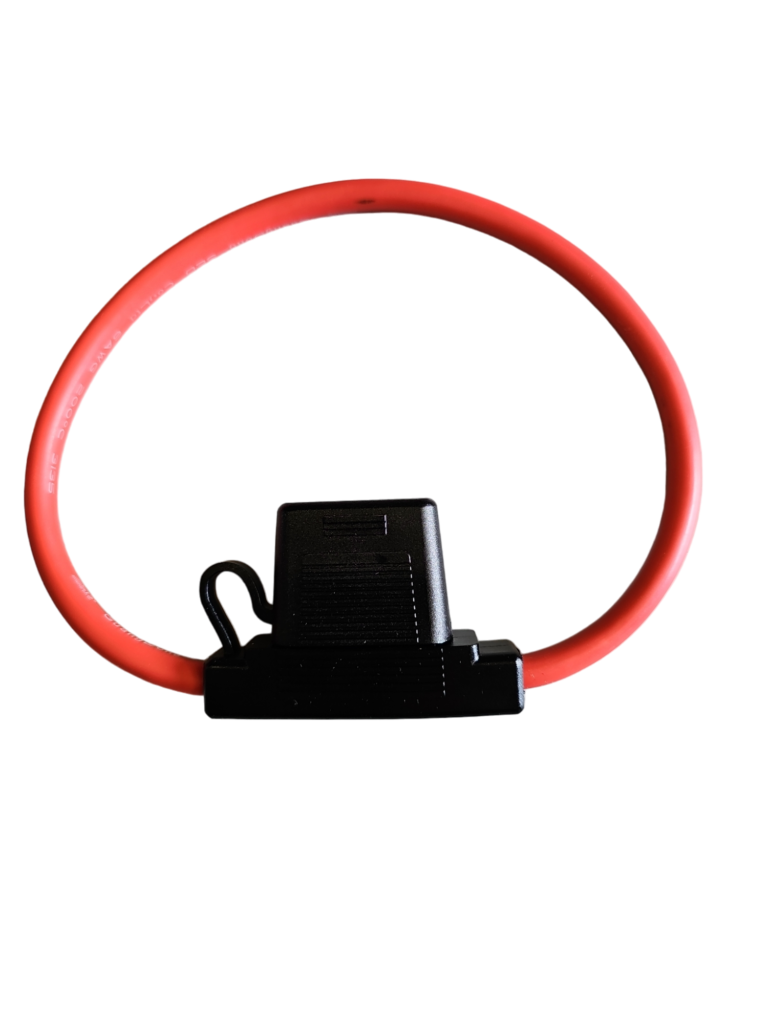

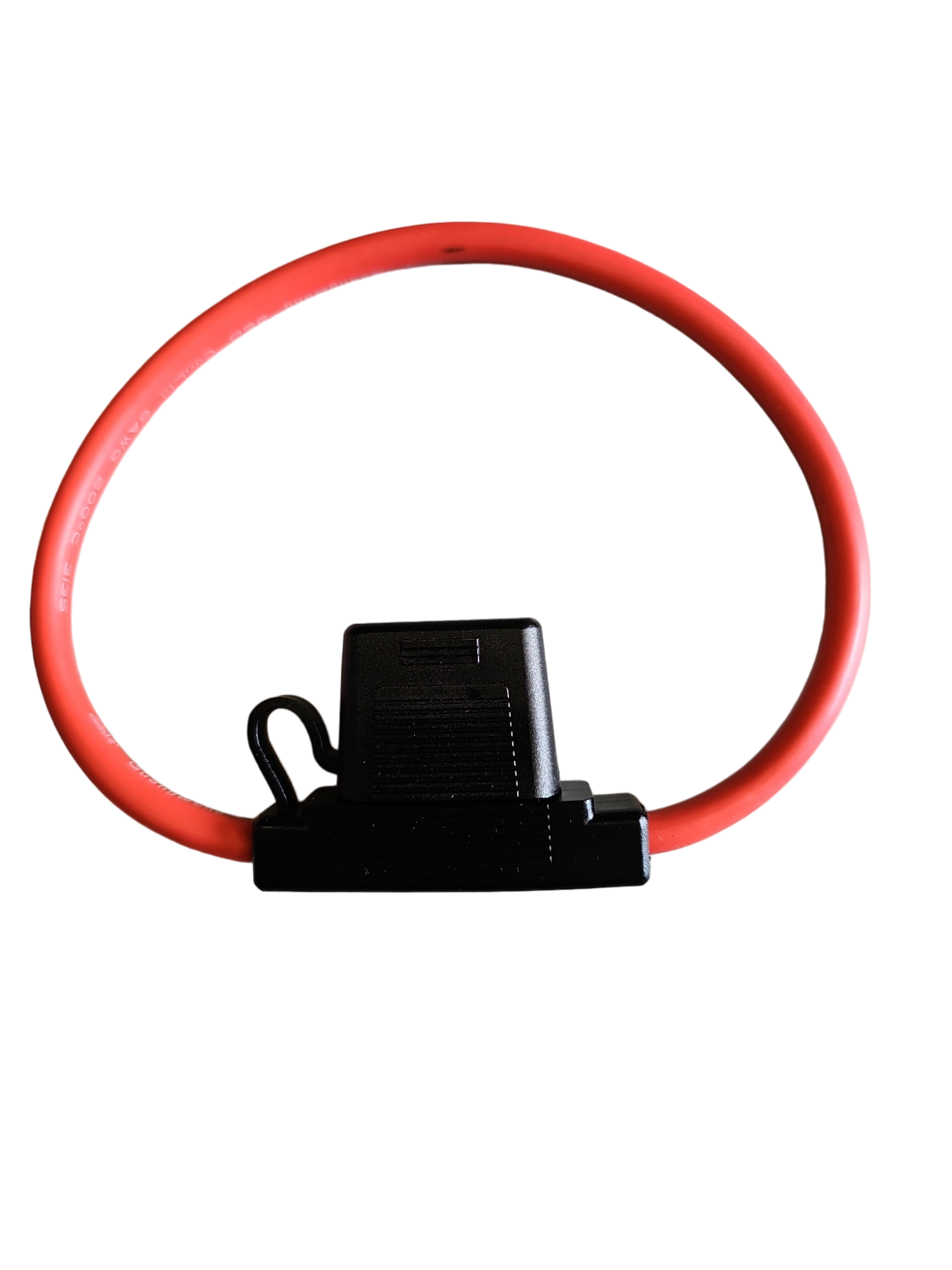

Maxi Twin Fuse Holder

Trailer Vison Double Fuse Holder

Trailer Vision Part no TVMTFH
MAXI TWIN FUSE HOLDER
Australian Registered Design

Dimension Length 3 cm Width 3.5 height 1.5
Polycarbonate Plastic
4 Silver Plated Heavy Duty Terminals
Comes in ploy bag
Great for heavy duty fuse able applications
TVMTFH can be used with the Trailer Vision Connector covers or with out The TVMTFH can be used in line

Trailer Vision Part no TVMTFH MAXI TWIN FUSE HOLDER
Australian Application Designed
Connect Pink & Red 6mm wire (not supplied) to terminals
Supplied, push into back of TVMTFH then push in 2 Maxi ‘
Fuses ( FMaxi Fuses not supplied but are optional extra)
into front of TVMTFH.
©

The TVMTFH is designed to fit in to the TV-A-201426,-50 PB, TV-201426-50 blister
TV328993-20, Trailer Side TV146375-50, Trailer Side TV-333820-50Flush Mount
Trailer Vision Connector assembly’s
